Understanding the Finite Element Method

The Finite Element Method (FEM), synonymous with FEA in structural analysis, discretizes the geometry into small elements. This method enables engineers to numerically solve complex equations that govern physical behaviors such as stress, strain, heat transfer, and fluid flow within each element. By integrating these equations across the entire structure, FEA provides insights into mechanical performance and structural integrity.

Key Components of FEA

FEA typically involves three main stages:

Preprocessing: Involves creating a digital model of the structure and defining material properties, boundary conditions, and loads.

Solving: Utilizes mathematical algorithms to solve the system of equations derived from the discretized model.

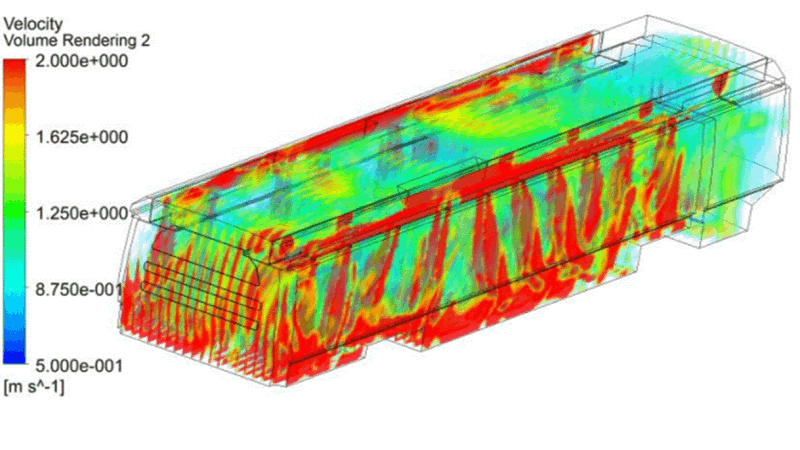

Postprocessing: Analyzes and visualizes results, such as stress distribution, deformation patterns, and other performance metrics.

FEA is facilitated through specialized software that automates and streamlines the analysis process. This software aids engineers in efficiently performing preprocessing, solving, and postprocessing tasks, enhancing productivity and accuracy in structural analysis.
